Hilltip IceStriker™ Stainless steel Salt Spreaders for trucks

SPREADER APPLICATIONS

The IceStriker™ 1000-3300 SSA/SSC series of 12/24V stainless steel salt spreaders are available in 1.0 to 3.3 cu yd capacities. The SSA model has a 6” stainless steel auger and the SSC model is equipped with a 12” pintle chain system. All SSA/SSC spreaders come standard with Hilltip’s StrikeSmart™ controllers with ground speed control and our patented HTrack™ 2-way GPRS tracking/control system. A variety of lighting options are available, as well as, in-cabin asymmetry adjustment of the chute.

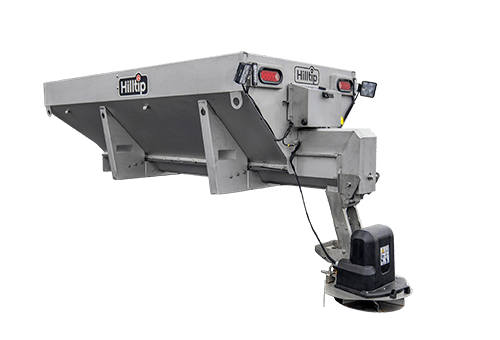

STAINLESS STEEL SPREADERS

The durable 12 gauge hopper is made in high quality AISI304 stainless steel. The hopper body is also entirely acid treated by submersion in an acid bath for clean welds and surfaces with guaranteed long-lasting corrosion -free use. The hopper surface is easy to clean and maintain, and provides a smooth material flow. The spreader is designed for spreading bulk sand and gravel, bulk/bag salt, sand-salt mixes and fertilisers.

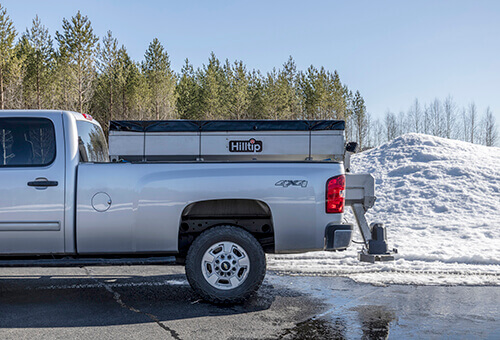

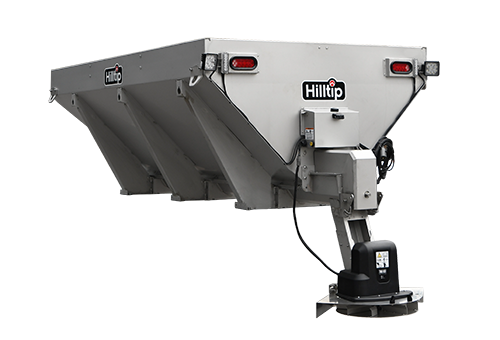

Stainless steel Salt spreader, Saleuse inoxydable

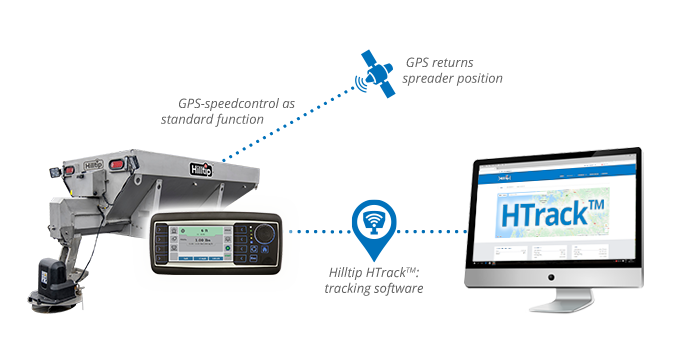

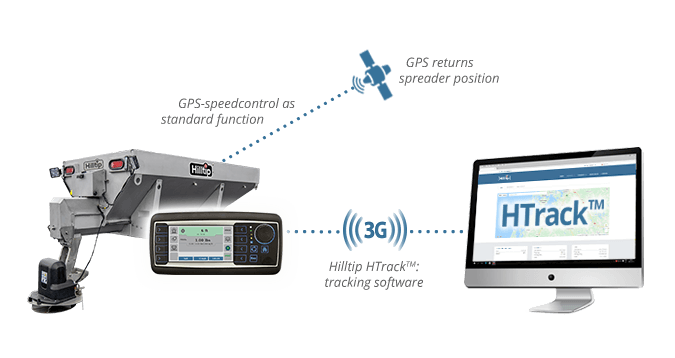

HTRACK™ TRACKING SYSTEM

These stainless steel salt spreaders are compatible with our HTrack™ tracking software. You can track and manage all of your spreading devices online on your computer, tablet or smartphone. The program shows treatment routes and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location, and material used can be summarized and generated as PDF reports.

Request a quote

Financing

Show brochure

FUNCTIONS AND ACCESSORIES

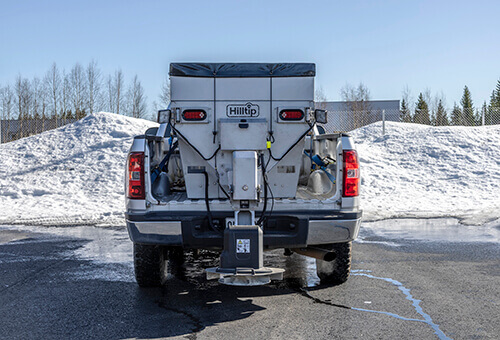

UTV Sand & Salt spreader, UTV salt spreader, Saleuse inoxydable

COLOR SCREEN CONTROLLER

Tailor your spreading session to your needs with the customizable controller. The automatic GPS speed control adjusts the amount of spreading material (lbs/1000 sq ft ) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to a USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions, like the vibrator, beacon and work light, from inside the cabin.

FLIP UP CHUTE

Stainless steel flip-up chute, designed for spreading salt with high humidity

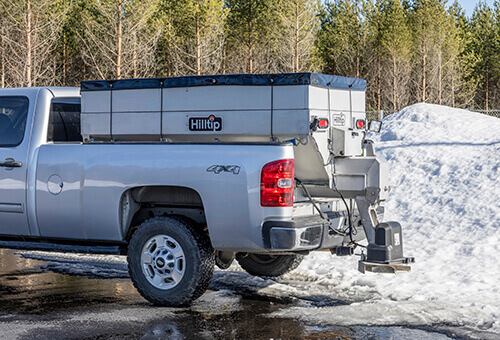

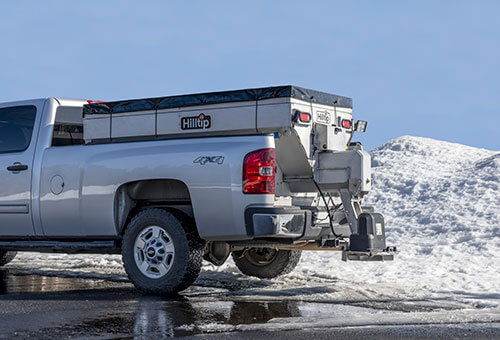

Salt spreader in stainless steel, Saleuse Inoxydable

INVERTED V

Inverted-V helps reduce heavy start-up loads on the auger. All in stainless steel.

VIBRATOR

Vibrator prevents bridging and de-icing material from clogging by shaking the inverted Vee.

AUGER

The 6″ stainless steel 3-pitch auger gives you an even flow of material to the spinner.

ONLINE DATA-LOGGING

Online data-logging transfer via controller

TARP KIT

ALSO INCLUDES

Built-in tie-down loops for strapping unit to truck
The motor is mounted inside a sealed weather-resistant enclosure, and requires no pulleys, sprockets, belts or chains
Includes an accessory wire for optional work light, beacon light and rear camera that can be activated from the standard controller
Heavy duty strap kit (4 pc)

LED STOP/ TAIL/ BRAKE LIGHTS

LED WORK LIGHT

Adjustable work light at the rear of the spreader for improved visibility

STROBE LIGHTS

To increase visibility and keep you safe in the traffic.

OTHER OPTIONS

Spreading symmetry adjustment, cabin control
End of material alarm sensor on spinner
Leg stands for practical storing and easier removal and installation
Chute extension for truck bed over 43”
6“ or 12” stainless steel side extension

TECHNICAL SPECIFICATIONS

Spreader specifications and dimensions.

SPREADER SPECIFICATIONS

Standard Metric

MODEL	1000 SSA/SSC	1400 SSA/SSC	2000 SSA/SSC	2650 SSA/SSC	3300 SSA/SSC
Total length (including spinner)	6.8 ft	6.8 ft	10 ft	10 ft	10 ft
Hopper length	4.5 ft	4.5 ft	8 ft	8 ft	8 ft
Minimum truck bed length	4.0 ft	4.0 ft	7 ft	7 ft	7 ft
Hopper width, maximum	45"	45"	45"	45"	45"
Width, min. truck bed	35"	35"	35"	35"	35"
Total height of the hopper from the loadingsurface of the carrying vehicle	31"	37"	31"	37"	43"
Struck volume	1.0 cu yd	1.4 cu yd	1.85 cu yd	2.50 cu yd	3.20 cu yd
Rounded volume	1.05 cu yd	1.45 cu yd	2.05 cu yd	2.70 cu yd	3.35 cu yd
Weight (empty)	474 lb	518 lb	606 lb	672 lb	728 lb
Hopper construction	Stainless steel
Spreading width, min -max	2-40 ft (may vary depending on material)
Spinner size	15"	15"	15"	15"	15"
Auger diameter (stainless steel)	6"	6"	6"	6"	6"
Conveyor chain	12"	12"	12"	12"	12"
Material	Salt, Sand, Granulate/Mixed (max 5/16’’ Ø)
Vehicle	min. ½ ton trucks	min. ½ ton trucks	min. 3/4 ton trucks	min. 3/4 ton trucks	min. 3/4 ton trucks

MODEL	750 SSA/SSC	1000 SSA/SSC	1500 SSA/SSC	2000 SSA/SSC	2500 SSA/SSC
Total length (including spinner)	206 cm	206 cm	307 cm	307 cm	307 cm
Hopper length	138 cm	138 cm	240 cm	240 cm	240 cm
Minimum truck bed length	120 cm	120 cm	210 cm	210 cm	210 cm
Hopper width, maximal	115 cm	115 cm	115 cm	115 cm	115 cm
Width, min. truck bed	90 cm	90 cm	90 cm	90 cm	90 cm
Total height of the hopper from the loading surface of the carrying vehicle	80 cm	95 cm	80 cm	95 cm	110 cm
Struck volume	750 l	1000 l	1400 l	1900 l	2430 l
Rounded volume	800 l	1100 l	1560 l	2060 l	2560 l
Weight (empty)	215 kg	235 kg	275 kg	305 kg	330 kg
Hopper construction	Stainless steel
Spreading width, min -max	1-12 m (may vary depending on material)
Spinner size	390 mm	390 mm	390 mm	390 mm	390 mm
Auger diameter (stainless steel)	155 mm	155 mm	155 mm	155 mm	155 mm
Conveyor Chain, width	300 mm	300 mm	300 mm	300 mm	300 mm
Material	Sand, salt, gravel, mixes (max 5/16’’ Ø)
Vehicle	min. 1/2 ton trucks	min. 1/2 ton trucks	min. 3/4 ton trucks	min. 3/4 ton trucks	min. 3/4 ton trucks

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system.

Current de-icing method

Dry salt
Pre-wet

Compare with

Pre-wet
Brine only

Salt consumption

lbs/year *

Salt price

$/lb *

You can save in material costs annually

0 $

* Calculations based on the following application rates: dry salt 30g/m², pre-wet 17g/m², brine 35ml/m². With a pre-wet system, the application rate is significantly lower, as the pre-wetted salt bonds to the ground and starts breaking up the ice immediately.
